UNBOXING NBN 10 Inches Active Subwoofer 1028APR

Advertisement
Information about this Gadget after Unboxing...
NBN ACTIVE SUBWOOFER 10 inches
AKA Model: 1028APR
150 Watts (RMS)
10 Inches Built-in active subwoofer Speaker
Load Impedance: 4ohms
Bass Reflex: 30 hertz
Mother board PCB: Likey120213
Version: 1000A.43
Filtering Capacitor Value: 2200uf/25V x3

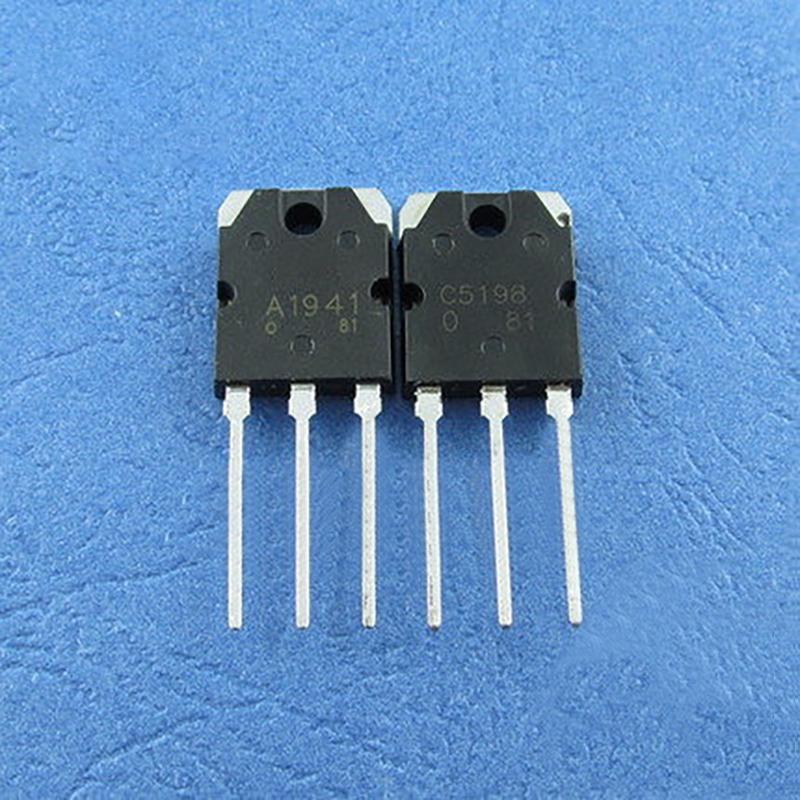

Mother Transistor Amplifier: 05198 A1941 RFZ46N



Screenshot

I Dismantle this my 3 years old NBN subwoofer amplifier to cleaning the box inside. Also I take screenshot what inside this gadget as reference to people want to know inside about.

This kind of amplifier produce DEEP BASS and replex it to the wall if you tune in the frequency controller.
It produce LOW pass normal at 30Hz and better combine to your normal sound stereo to highlight the bass sound. I used it as crossover to my car stereo to make it 2.1 sound system.

WATCH Video below shows a complete detail of UNBOXING and DISMANTLE of this gadget.




Pros and Cons
It is good and durable until this year this amplifier have a good performance.
The Speaker is "open" at side causing accidentally kicked or wet things can damaging it.
have a good heat sink alloy for longer hours operate to prevent heating
You need a Good power supply to work it properly the bass output. It need a super capacitor.
I get burned wires when i using gauge #16 power wires. It means It consume High Current to your Battery.

This NBN Subwoofer is powered by 2 transistor type which is NPN and PNP type powered by step up DC to DC module built-in on PCB that the Maximum output of 150W power output..



GET it NBN 1028APR ACTIVE SUBWOOFER 10 at specific store Lazada or Shopee
Visit more Transistor type Amplifier board
What is Audio Watts RMS to PMPO Calculation sample
